Oily Sludge Decanter is specialized for oily sludge treatment, drilling waste separation, tank sludge cleaning. After the oily sludge pretreatment by heating, diluting, chemical enhancement with polymers, the oily sludge will feed to high-speed sludge decanter for first phase solid liquid separation. The solids will be separated to form sludge cake, and the liquid separated mixed with oil and water. In next phase, the oil water will be feed to disc stack separator for final treatment, and can recycle the oil and water separately by oil tank and water tank.
|
Model |
KSLW223 |
KSLW363 |
KSLW453 |
KSLW553 |
|
Bowl Diameter |
220mm (9in) |
360mm (14in) |
450mm(18in) |
550mm (22in) |
|
Bowl Length |
670mm(26in) |
1271mm(50in) |
1540mm(61in) |
1800mm (71in) |
|
Operation Capacity |
5m3/h |
30m3/h |
60m3/h |
90m3/h |
|
Max Bowl Speed |
4500rpm |
3900rpm |
3200rpm |
3000rpm |
|
Typical Bowl Speed |
3800rpm |
3200rpm |
0~2800rpm |
0~2500rpm |
|
Max G Force |
2492 |
3063 |
2578 |
2719 |
|
Typical G Force |
1777 |
2062 |
0~1973 |
0~1888 |
|
Separation point |
2~5micron |
2~5micron |
2~5micron |
2~5micron |
|
Differential Speed |
10/20/30 |
0~40 |
0~35 |
0~45 |
|
Gearbox Torque |
500N.M |
3500N.M |
7500N.M |
12000N.M |
|
Gearbox Ratio |
35:1 |
57:1 |
57:1 |
35:1 |
|
Bowl Drive(kw) |
7.5kw |
37kw |
55kw |
90kw |
|
Scroll drive(kw) |
3kw |
11kw |
22kw |
37kw |
|
Weight |
850kg |
3400kg |
4480kg |
5840kg |
|
Dimension (mm) |
2130x790x1115 |
3414x1516x1430 |
3824x1798x1317 |
4293x1978x1381 |
Main rotation parts made from SS316/SS2205, processed by centrifugal
casting technology or mold forging technology

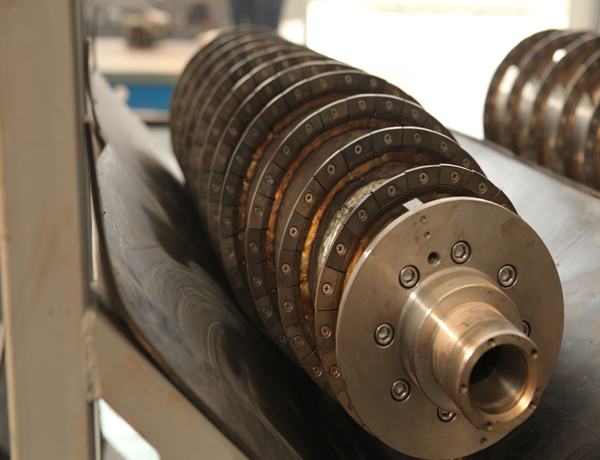

Screw protection by tungsten carbide alloy tiles or hard facing
special technology
Each part is detected at constant temperature, to ensure the process
quality and machining accuracy
ONLY adopt SKF Sweden or FAG Germany original bearing, to ensure the
stable performance and lifetime of bearing
Equipped with China good brand motors, ABB/Siemens motor for option
Main electrical components are sourced from China premium brands, SIEMENS,
Schneider or ABB for option
VFD + PLC + HMI Smart control system can achieve much better user
experience
Control system with monitoring device & alarm device, protect
decanter from overloading, short circuit and lack of phase

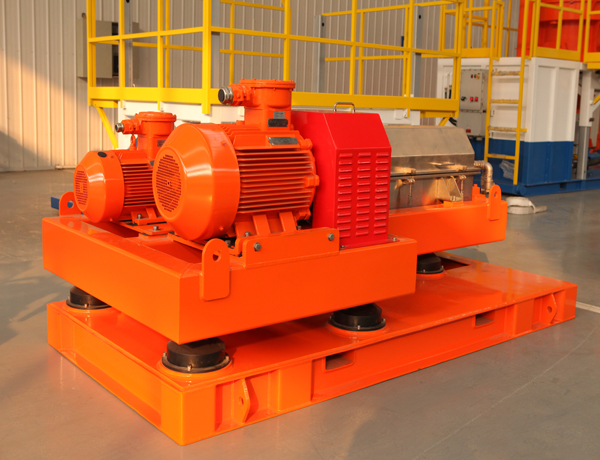

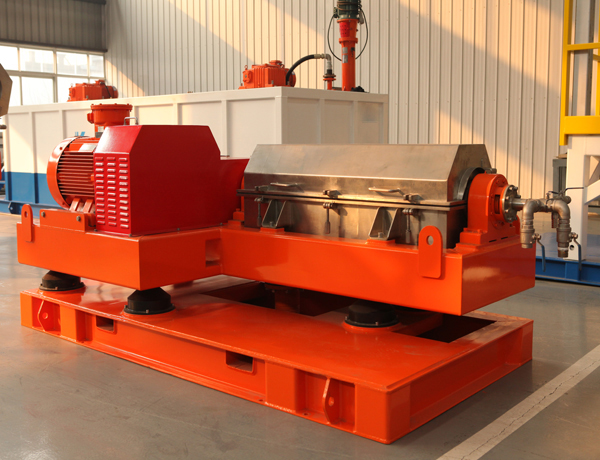

Decanter centrifuge with DNV2.7-1 Certificate SKID available for
offshore drilling activities.
