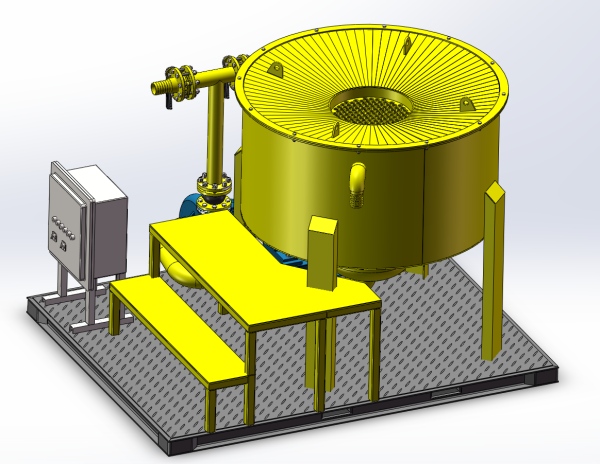

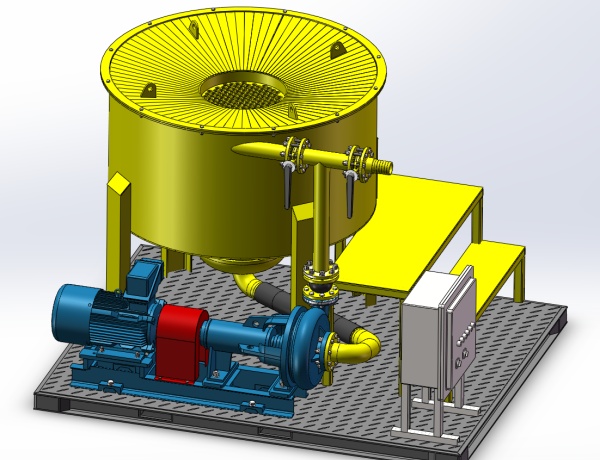

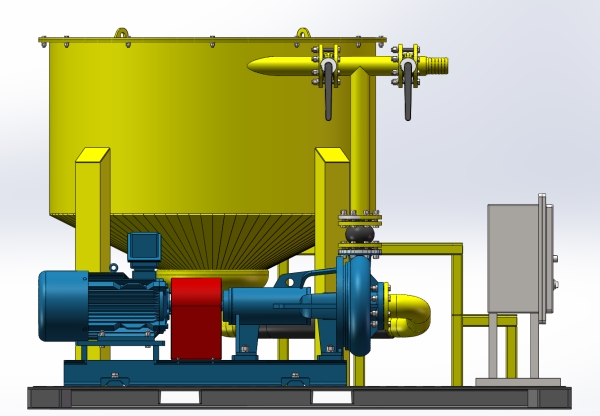

Bentonite mixer
2022-11-04

Bentonite mixer unit adopts the principle of Venturi jet to mix and make pulp, with good mixing effect and high pulping efficiency;

  • It can be sheared according to flocculent drug and can be dissolved efficiently;
  • PLC control system carries out automatic slurry preparation to save manpower;
  • Skid mounted design is adopted as a whole to facilitate transportation and movement;
  • It can be used to prepare bentonite for trenchless infrastructure construction such as horizontal directional crossing, shield tunneling and pipe jacking


Technical Specifications:

ModelHJXT5015
Treatment Capacity(m³/h)
30
Working Pressure(Mpa)
0.3
Volume(m³)
1.5
Pump Power(kW)
7.5
Inlet Size(DN/inch)
DN80 / 3"
Outlet Size(DN/inch)
DN80 / 3"
Suction Port Size (DN/inch)
DN100 / 4"
Weight(kg)
2280
Dimension(mm)
2500x2000x1755
