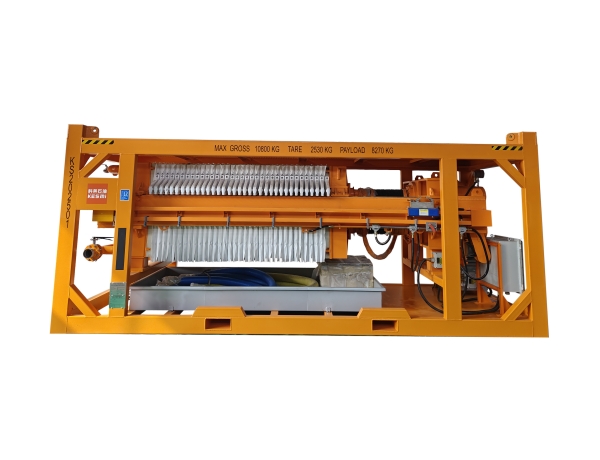

The size of conventional filter press can pose challenges, particularly in offshore platform operations. Offshore equipment must be compact, versatile and certified by DNV271 standard. In response, KES Separation designed compact, modular service DE Filter Press equipment with reduces footprint and minimizes flowlines and connections.

Clean completion fluids or wellbore clean up fluids are used for clean and protection of the wellbore to maximize the oil production. The diatomaceous earth filter press is recommended when processing wellbore fluids to overcome potential filtrate throughput dropoff. The unit is an effective, cost-efficient solution to conventional filtration.

The filter area can be customized from small ones to big ones. The heavy duty system is powered by hydraulic system which can provide stable pressure to the filter plates. The DE Filter press can be operated in single or double units to work with one slurry tank skid.

The frame of DE Filter Press is designed and manufactured according to DNV2.7-1/ISO 10855/EN12079 certificate, can be used for both onshore and offshore operations.

Technical features of Dual Tank Mixing Skid:

Frame designed and certified according to DNV2.7-1/ISO10855/EN12079

Stable hydraulic system for pressing function

Stainless steel collection pan beneath the filter press

Different filter press models available per request

Heavy duty, reasonable design and compact footprint

Applications of various fluids:

Completion fluids/ Workover fluids / Wellbore clean up fluids

Produced water/ Surface water intake/process water

Waste water/pipeline flushing
