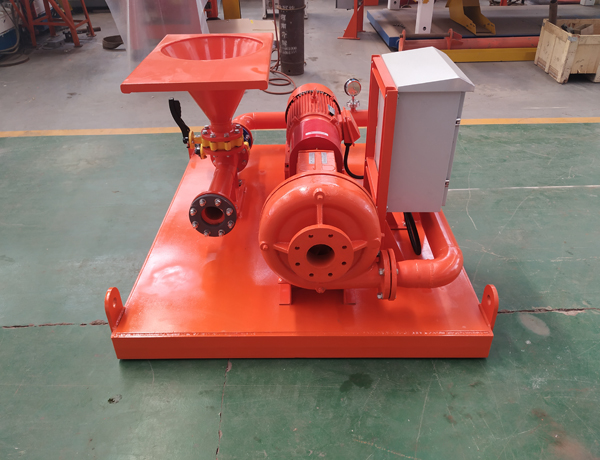

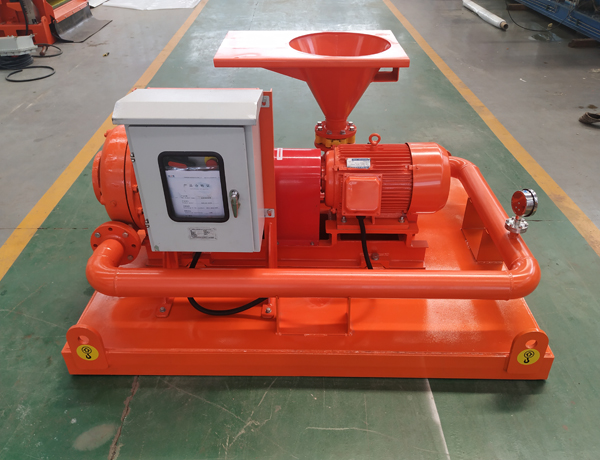

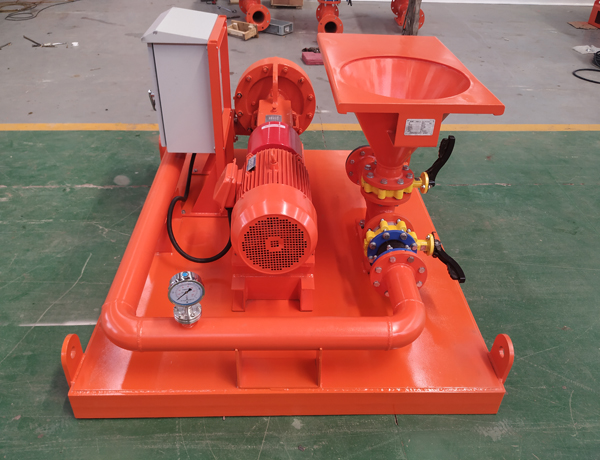

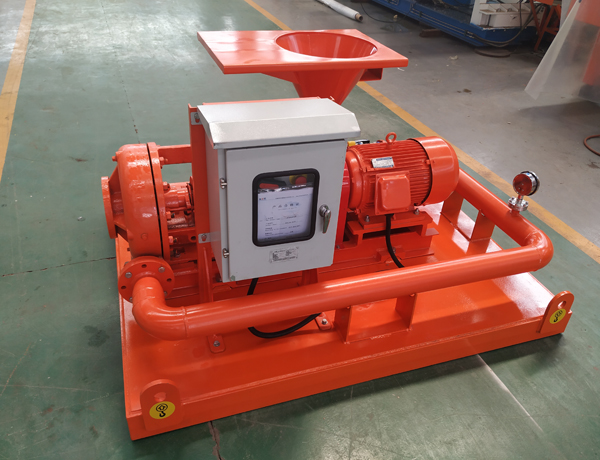

Jet Mud mixer is
designed to mixing the barite or bentonite into the drilling fluids and adjust
the mud density / mud viscosity to fulfill the drilling target. Single Jet Mud
mixer is composed of one set centrifugal pump, one set mixing hopper (verturi
hopper) and one set electrical control panel. (The pump control can also design
into system control panel). Double Jet Mud Mixer is composed of double pumps
and double hoppers, connected by manifold valves and hoses to achieve large
mixing capacity target.
According to the job request, the Jet Mud mixer can be used to mixing barite to increase the drilling mud density; Also, Jet Mud mixer can be used to mixing bentonite to increase the drilling mud viscosity. KES Separation Jet Mud mixer can be used to work for oil & gas drilling mud system, HDD mud cleaning system, TBM mud purification system, Pipe jacking mud plant etc.
|
Model |
Flow(m3/h) |
Motor power(kw) |
Inlet / outlet |
Weight (kg) |
Dimension（mm） |
|
KSSL-045 |
45 |
11 |
DN100 / DN100 |
977 |
1850x1540x950 |
|
KSSL-055 |
55 |
15 |
DN100 / DN100 |
997 |
1850x1540x950 |
|
KSSL-065 |
65 |
18.5 |
DN100 / DN100 |
1045 |
1850x1540x950 |
|
KSSL-090 |
90 |
22 |
DN125 / DN100 |
1136 |
1850x1540x930 |
|
KSSL-120 |
120 |
30 |
DN125 / DN150 |
1340 |
2200x1840x1020 |
|
KSSL-150 |
150 |
37 |
DN150 / DN150 |
1492 |
2200x1840x1060 |
|
KSSL-200 |
200 |
45 |
DN150 / DN150 |
1582 |
2200x1840x1060 |
|
KSSL-272 |
272 |
55 |
DN200 / DN150 |
1732 |
2200x1840x1020 |
|
KSSL-320 |
320 |
75 |
DN200 / DN150 |
2062 |
2200x1840x1070 |
Technical Features of Jet Mud mixer
Working pressure range: 0.25~0.4 Mpa
Both Ex-proof / Non Ex-proof standard
available;
Ex-proof standard can choose EXdIIBt4/IEC/ATEX for
option
Centrifugal pump is interchangeable with NOV
Mission pump, help customer to source the spares locally
High precision machining pump with anti-wearing
production material help to get better performance
High quality mechanical seal to prevent pump
leakage and reduce the maintenance
Top brand bearing for the centrifugal pump,
stable operation with longer service life
Mixing unit with DNV2.7-1 Certificate SKID for
option.
3 layers Marine anti-corrosion paintings is for option
Mixing Funnel is part of mixing system working together with centrifugal pump. The funnel can be produced by carbon steel or stainless steel. Additional valves can be designed on the funnel to achieve special requirement.
|
Model |
KLD-150S |
KLD1-2 |
|
Flow rate (m3/h) |
240 |
180 |
|
Work Pressure(Mpa) |
0.25-0.45 |
0.25-0.45 |
|
Funnel Diameter
(mm) |
620 |
708 |
|
Inlet/Outlet
Diameter (mm) |
150 / 150 |
150 / 150 |
|
Mixing Pump
Power (kw) |
55 |
55 |
|
Solid Phase
Mixing Capacity |
Barite 14000kg/h Bentonite
14968kg/h Calcium Chloride
10080kg/h Calcium
Carbonate 11422kg/h |
Barite 300kg/h Bentonite
150kg/h |
|
Liquid
Inhalation Capacity |
25m3/h similar to the
chemical liquid of water |
N/A |
|
Weight (kg) |
265 |
185 |
|
Dimension (mm) |
1250×752×1000 |
1518×708×980 |
KLD-150S mixing unit is equivalent to SWACO
Hiride Eductor. KLD-150S integrates a proprietary
minimum pressure drop (MPD) nozzle and unique
trimix diffuser (TMD) into an easily installed, rugged,
Stainless steel frame which has been designed
to an optimal height for improved ergonomics.
Equipped with wear resistant imported PU
material
Rapid complete mixing of dry or liquid
additives into the fluids system
Lowest comparable pressure loss
Creates high shear rates in a circulating loop
Compact design with smaller footprint, ideal
for rigs where space is at a premium
Dust free, dry product mixing
Minimize “ fish eyes ” in hard to mix products
Flexible design eliminates extra equipment
Greater degree of worker safety
