Slurry pump can be used in environmental
protection engineering, municipal engineering, thermal power plant, coal coking
plant, refinery, steel plant, mining, paper industry, and cement plant, food
factory, printing and dyeing industries. The pump is normally used for suction &
transportation of concentrated liquid, heavy oil, oil residue, drilling mud,
mortar, quicksand and flowing sludge in urban sewage drainage channels. YZ
slurry pump can also transport high temperature (up to 500deg C) kerosene,
crude oil, asphalt, oily sludge and so on.
In drilling mud system, slurry pump can be
installed into mud pit, suction the mud and feed to shale shaker. The slurry
pump can also be put into tank compartment and transfer the mud to the points
requested.

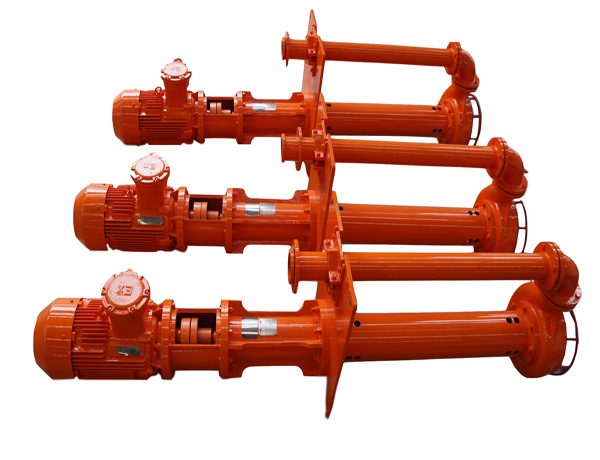

Slurry pump is a vertical single-stage single-suction cantilever centrifugal pump structure; impeller is semi-open, with mixing blades at the extension of impeller suction edge. This pump is widely used for HDD & TBM mud recycling, and many other different industries.
|
Model |
Flow(m3/h) |
Lift (m) |
Motor (Kw) |
Outlet (Inch) |
Weight(Kg) |
Dimension(mm) |
|
KS50YZ20A-18 |
30 |
10 |
4 |
2 |
370 |
2620×500×720 |
|
KS50YZ40A-10 |
40 |
10 |
5.5 |
2 |
600 |
2700×500×700 |
|
KS80YZ50A-20 |
60 |
18 |
7.5 |
3 |
610 |
2650×500×700 |
|
KS80YZ80A-20 |
80 |
20 |
11 |
3 |
718 |
2750×580×730 |
|
KS80YZ80A-20 |
110 |
24 |
18.5 |
4 |
840 |
2900×600×900 |
|
KS100YZ100A-30 |
120 |
28 |
22 |
4 |
880 |
2950×600×900 |
|
KS100YZ160A-38B |
160 |
26 |
30 |
4 |
1300 |
3100×750×900 |
|
KS150YZ250A-40B |
240 |
24 |
37 |
6 |
1420 |
3160×700×1130 |
|
KS150YZ250A-40A |
270 |
30 |
45 |
6 |
1510 |
3190×700×1130 |
Slurry Pump Model Meaning: 80-YZ80-20A
YZ - Vertical Submersible slurry pump,
driven by coupler
80 – Pump outlet diameter (mm)
80–Pump design flow rate (m ³/h)
20 –Pump design head (m)
A –Impeller first to be cut less
Pump's drive type: The slurry pump is connecting through the
flexible coupling and the electric motor
The pump direction of rotation is clockwise from the prime move;
Slurry pit pump with structure of vertical single stage and single
suction system overhung centrifugal pump
Made of abrasion-resistant alloy, can convey medium with high
concentration particle
No bearing and Gland Seal between impeller and pump body, so the pit
pump is maintenance-free and high temperature resistance
The slurry pit pump can be used for HDD project, Feeding Shale
Shaker from Mud Pit for HDD Mud Recycling, Feeding Desander Desilter, Feeding
Decanting Centrifuge and Mining Slurry Separation System
The pit pump speed is 1450RPM under 50Hz or 1750RPM under 60Hz. Only
one for option, not dual speed pump
