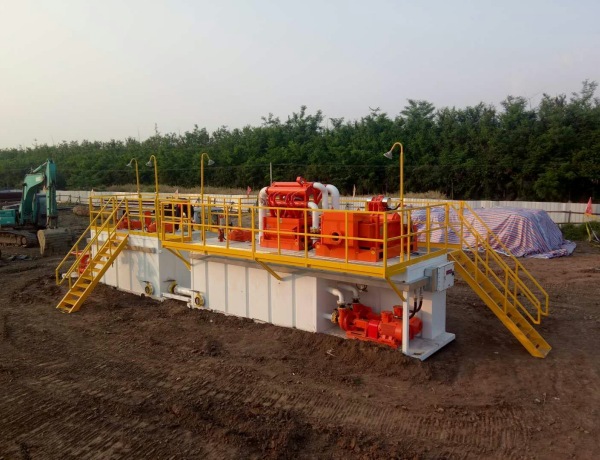

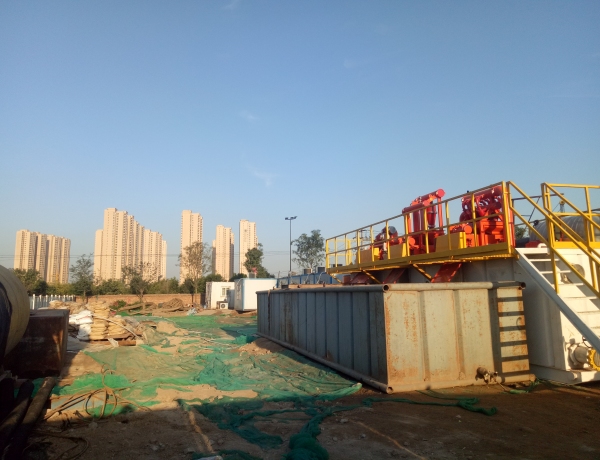

HDD Mud System for High-Performance Horizontal Directional Drilling
An HDD mud system is a critical solution used in horizontal directional drilling (HDD) to manage, clean, and recycle drilling fluid. In modern trenchless construction projects, maintaining proper drilling fluid performance is essential for achieving high efficiency, safety, and cost control.
Horizontal directional drilling is widely used to install underground pipelines, cables, and other utilities without disturbing the surface. The mud system plays a vital role in ensuring smooth drilling operations by cooling the drill bit, transporting cuttings, and stabilizing the borehole.
What is an HDD Mud System?
An HDD mud system is a complete setup designed to treat and recycle drilling mud used in HDD operations. It removes solids such as sand, soil, and rock particles from the drilling fluid and allows it to be reused efficiently.
Request a Custom HDD Mud System Solution
Main Solids Control Equipment for HDD Mud System
1. KSMS-500A Mud System suitable for 40HC container shipment:
S/N | Product | Qty | Tank Size(mm) | Wight(T) |
1 | Shale Shaker | 1 | 10000x2100x1894 | 13.6 |
2 | Mud Cleaner | 1 | ||
3 | Centrifugal Pump | 3 | ||
4 | Agitator | 1 | ||
5 | Mud Hopper | 1 |
2. KSMS-500B Mud System with ISO container corner, convenient for truck transportation
S/N | Product | Qty | Tank Size(mm) | Wight(T) |
1 | Shale Shaker | 1 | 12192x2438x2088 | 18.1 |
2 | Mud Cleaner | 1 | ||
3 | Centrifugal Pump | 3 | ||
4 | Agitator | 2 | ||
5 | Mud Hopper | 1 |
Importance of HDD Mud System in Drilling
The HDD mud system acts as the backbone of drilling operations. Without proper mud management, drilling efficiency decreases, and project risks increase.
Key functions include:
- Cooling and lubricating the drill bit
- Transporting drill cuttings to the surface
- Stabilizing borehole walls
- Controlling pressure during drilling
- Reducing friction in the drill string
Why Choose KES Separation HDD Mud System?
KES Separation provides advanced HDD mud systems designed for high efficiency and durability.
Key features:
- Advanced solids control technology
- High separation efficiency
- Customizable system design
- Easy transportation and installation
- Reliable and long-lasting performance
Q1: What is an HDD mud system?
An HDD mud system is used to clean, recycle, and manage drilling fluid in horizontal directional drilling operations.
Q2: Why is mud recycling important?
Mud recycling reduces cost, improves efficiency, and minimizes environmental impact.
Q3: What equipment is used in HDD mud systems?
Shale shaker, desander, desilter, centrifuge, pumps, and mud tanks are commonly used.
Q4: How does HDD improve construction efficiency?
HDD allows underground installation without excavation, reducing time and surface disruption.
Key Benefits:
Key Advantages:
- Can effectively control drill fluids performance, reduce the drill-jamming accidents and improve pore-forming quality;
- Can save bentonite and barite; drastically reduce the waste mud transportation cost;
- The effective separation of soil slag by equipment will help to improve pore-forming efficiency;
- The slurry closed cycle purification mode and lower slag moisture content reduce the impacts to environment;
- Safe and easy operation, simple maintenance, stable and reliable operation.
Operation & Service Support
We deliver tailored, full-cycle operation and service support for HDD (Horizontal Directional Drilling) slurry desanding systems, ensuring steady performance during non-excavation projects. Our on-site technical teams provide hands-on training covering system commissioning, parameter optimization, and emergency troubleshooting, empowering your operators with professional capabilities. We offer 24/7 remote diagnostic support for quick issue-solving, minimizing unplanned downtime. Customized preventive maintenance plans and a global spare parts inventory enable timely component replacement and proactive performance tuning. Our dedicated engineers are on standby for rapid on-site assistance, guaranteeing your HDD projects stay on track and cost-efficient.
