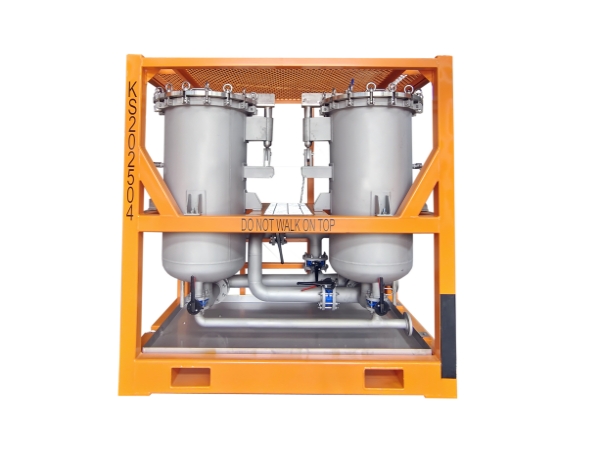

Dual Pod Filtration Unit is a type of filtration system used in the oilfield industry. It removes contaminants and impurities from fluids, such as drilling mud, completion fluids, and produced water. Firstly, the unit consists of two separate filtration pods or vessels that work together to achieve efficient and effective filtration. Notably, each pod contains a filter medium, such as cartridges, bags, or screens. It can be designed to handle different types of fluids or contaminants. Additionally, the pods can be connected in parallel, allowing for simultaneous filtration of two separate fluid streams. Alternatively, they can be connected in series, where the fluid flows through one pod and then the other for additional filtration.

Moreover, the Dual Pod Filtration Unit offers several benefits, including improved filtration efficiency, increased fluid clarity, and reduced contaminants and impurities. Consequently, this leads to extended filter life and easier maintenance and replacement of filter media. Furthermore, this type of filtration system is commonly used in various oilfield applications. Examples like completion fluid filtration, produced water treatment, and wellbore cleanup and displacement. Ultimately, by using a Dual Pod Filtration Unit, oilfield operators can achieve better fluid quality, reduced waste, and improved overall efficiency in their operations.

The frame of filtration unit is designed and manufactured according to DNV2.7-1/ISO 10855/EN12079 certificate, can be used for both onshore and offshore operations.

Technical features of Dual Tank Mixing Skid:

Frame designed and certified according to DNV2.7-1/ISO10855/EN12079

Quick opening and close lid

All wetted parts made from SS316

Can be used in parallel or in series per job requirement

Applications of various fluids:

Completion fluids/ Workover fluids / Wellbore clean up fluids

Produced water/ Surface water intake/process water

Waste water/pipeline flushing
