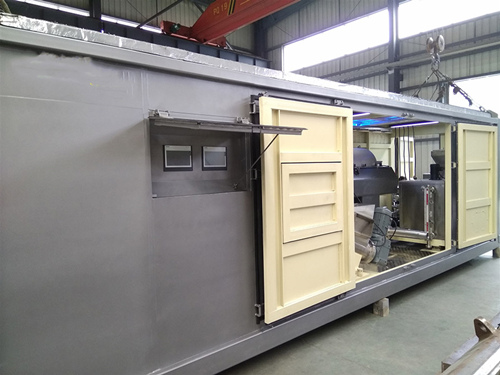

The Containerized Centrifuge

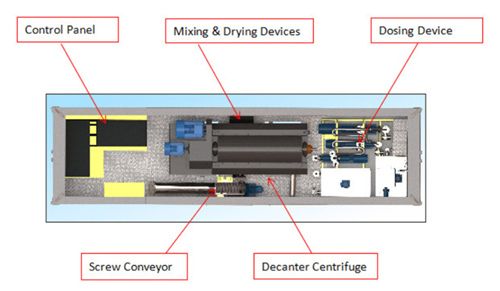

Separation unit is composed of feeding pumps, chemical enhancement unit, high speed decanter
centrifuge, solids transfer conveyor and mixing & drying unit. All the
parts are put in one 20ft container and controlled by PLC control system and
can work automatically by pre-set. Then containerized centrifuge separation
unit is easy for movement and fast installation. It can be used for oily sludge treatment, waste water
treatment, dredging sludge treatment, etc.
When the job completed, all the accessories including wire cables, flow pipelines can be put into the container and move to next station in a fast and clean way.
Screw pump with other names like
positive displacement pumps can be used for the centrifuge feeding unit; also
the screw pump can be used for feeding the chemical dosing unit. With no pulse
feeding, the liquid can be mixed quietly and evenly in the chemical dosing
unit.
With PAC/PAM, the ultra-fine
solids can be coagulated and become bigger solids in the chemical doing unit.
The slurry after chemical enhancement will become much easier for centrifuge
separation. Big particles separated, the liquid discharge will much clean.
In oil & gas industry,
normally no need the centrifuge to work continuously 24hours per day and 7days
per week. Because of the sands and soil in the drilling mud, we focus on the
wearing performance of centrifuge. Because of the oil drilling site, the
centrifuge motor and control panel need to be ex-proof standard which can be
used for Zone I or Zone II area.
Our decanter centrifuge can show high stability in the long-term operation. With patent
in the whole centrifuge design, patent for vibration and patent screw
protection, we can show a very different product from design to production to
performance.
Screw conveyor is selected for
the solids discharge from decanter centrifuge. In order to layout the conveyor
and move the whole unit easily, the conveyor is designed on one rotation base.
When need to use the conveyor for project, the conveyor can be rotated to
outside, and when need to move the whole unit, the conveyor can be rotated
inside the container for easy movement.
