Sand water separation process is widely adopted in many industries production. It is the requirement of recycle, reuse, cost-saving, environmental protection and sustainable development. Through years of working on separation process equipment manufacturing, KES Separation has grown into one of leading brand in separation equipment & solutions.

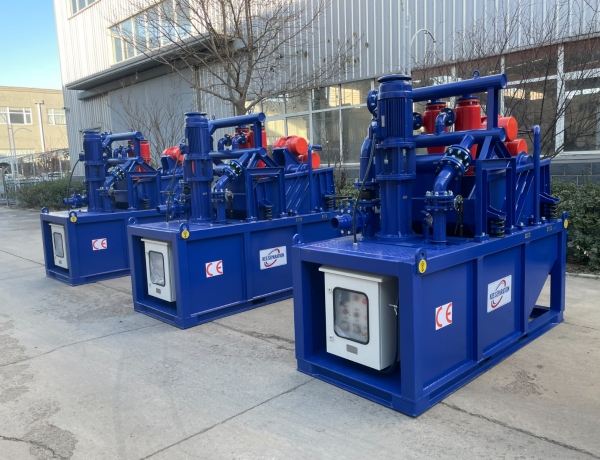

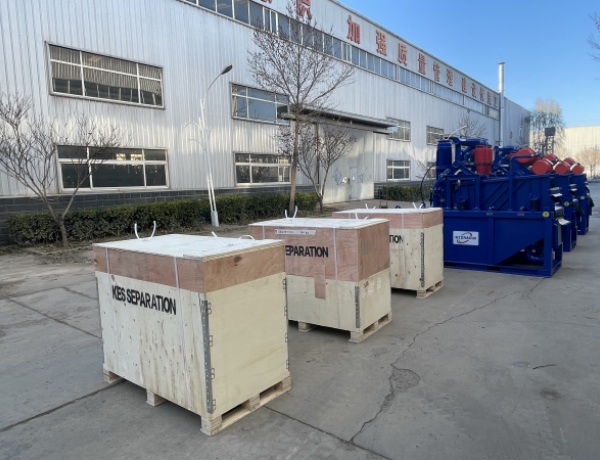

Recently we have 3sets CE Certified desanding plant ready for delivery to Europe. The desanding plant  will be applied to remove the sands from sand water slurry. After the sand removed, the clean water will be returned to water treatment system. Meanwhile, the desanding plant can also be applied to construction mud desanding and recycling, eg. TBM tunneling mud desanding, bore hole drilling desanding, mini HDD mud desanding, mini water well drilling desanding, pipling mud desanding etc.

1)       Submersible slurry pump

Submersible slurrypump is adopted in the desanding plant to work as feeding pump to the 6in cyclones. Between impeller and pump body, the slurry pump is without bearing and gland seal. It is maintenance-free design and can bear high temperature slurry. The pump impeller is made of abrasion-resistant alloy, can convey medium with high concentration particle.

2)       Double deck shaker

The double deckshaker is mini shaker with 2 pcs shaker screens. The raw sand slurry will be pumped to the feeding port of desanding plant, where the slurry will flow to the bottom layer shaker for 1 ^st stage separation. We equipped 2mm stainless steel screen to remove the bigger particles in the slurry. After separation, the slag will be dumped out, and the slurry with fine solids will drop to the catch tank. And then, the slurry will be feeding to the cyclones by slurry pump. By 6in cyclones, the 30mm particles and above size particles will be separated, and the clean slurry can overflow to the intermediate tank for temporary storage.

3)       The production standard of the tank

In order to meet the requirements of long-term use, full welding is used for welding. After welding is completed, clean the welding slag before entering the sandblasting process. After sandblasting, painting process will be adopted immediately to prevent secondary rusting of steel.

Regarding the brand of painting, we adopt Tianjin Meishibang painting which is famous for their Marine anti-corrosion paint. Many drilling rig manufactures in China adopt lots of paint from this company. All in all, it is not easy to make a perfect production after we awarded order. Our company's mission is: we are not chasing for more orders, but we try our best to strive for excellence production for every order.

Main work scope of KESS including solids control, construction mud treatment, big bowlcentrifuges , oily sludge treatment system. Welcome to contact us when you need any support.
