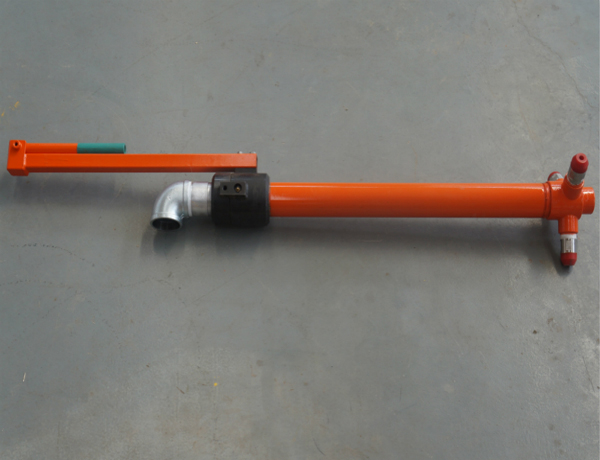

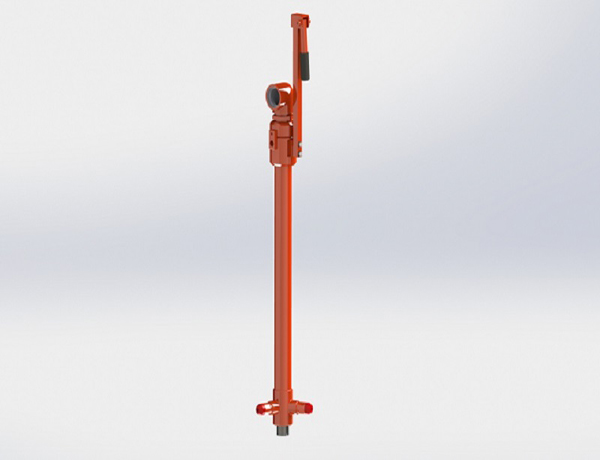

Mud Gun
Mud Gun is necessary parts for drilling mud system. Working together with centrifugal pump, mud gun can be used to spray and clean the wall of the mud tanks; also can be used to filling drilling mud to tank compartments.
Product Features
Mud Gun is a necessary part of a drilling mud system. Working together with a centrifugal pump, the mud gun can be used to spray and clean the walls of mud tanks, and can also be used to fill drilling mud into tank compartments. The mud gun is available with different pressure options: low-pressure, medium-pressure, and high-pressure mud guns.
With a compact design and simple structure, the mud gun offers flexible operation and requires minimal maintenance. All these features help to improve the overall performance of the mud system.
Technical Parameters of Mud Gun:
| Model | Gun Diameter (mm) | Connection Size (mm) | Rotation Degree | Nozzle Qty. | Working Pressure (Mpa) |
| NJQ50-3G | 2inch(50mm) | 2inch(50mm) | 0° | 1 | 1.2/3.2/6.4 |
| NJQ50-3X | 2inch(50mm) | 2inch(50mm) | 360° | 3 | 1.2/3.2/6.4 |
| NJQ80-3G | 3inch (80mm) | 3inch (80mm) | 0° | 1 | 1.2/3.2/6.4 |
| NJQ80-3X | 3inch (80mm) | 3inch (80mm) | 360° | 3 | 1.2/3.2/6.4 |
Technical Features of Mud Gun:
- Designed and manufactured for different drilling mud solids control systems.
- Can be matched with a centrifugal pump or shear pump to clean the inner walls of mud tanks and prevent mud sedimentation.
- Made of high-quality national standard steel.
- Discharge nozzles can be made of polyurethane or tungsten carbide alloy.
- Flexible in configuration of size and pressure rating.
- Simple design and easy to operate.
- High-quality painting per international standards.
