High G Dryer
The Drilling Mud Shale Shaker is used for screening and separation in solids control systems. KES Separation’s shale shakers are designed to operate for onshore and offshore drilling. High G drying shakers / Vertical G dryers are used to recover the base mud from the shaker discharges.
Product Features
Drilling Mud Shale Shaker is the first phase screening and separation machine in a solids control system. With over 10 years of experience in design and manufacturing, KES Separation heavy-duty shale shakers are able to operate in most hazardous areas for both onshore and offshore drilling activities.
During the oil drilling mud system, the cuttings discharged from the shaker unit normally need to be further separated to recover the base mud for reuse. Meanwhile, the cuttings can be much drier after further treatment. The dry cuttings are reduced in total volume, which helps the easy transportation from the rig site to a central handling point, like a Thermal Desorption Unit or other kinds of oily cuttings treatment systems. High-G drying shakers / Vertical G dryers are very popular to stand by the shaker unit and work to recover the base mud from the shaker discharges.
Technical Parameters of High G Dryer:
| Model | KSZS114-MD |
| Vibrating Mode | Linear motion |
| Max. Capacity (m3/h) | 140 |
| Vibrating Motor (kW) | 2×1.94 |
| Adjusting G force (G) | ≤8.0G |
| Vibration Amplitude (mm) | 4.4~6.34 |
| Deck Adjustment | -2°~+5° |
| Screen Qty (pcs) | 4 |
| Screen Size(mm) | 585×1165 |
| Screen Area (m²) | 2.73 |
| Weir Height (mm) | 885 |
| Weight (kg) | 1520 |
| Dimension (mm) | 2312x1893x1400 |
Technical Features of High G Dryer:
- Linear Motion, Balance Elliptical Motion, and Dual Motion are available.
- Capable of dealing with heavy mud at large feeding capacity.

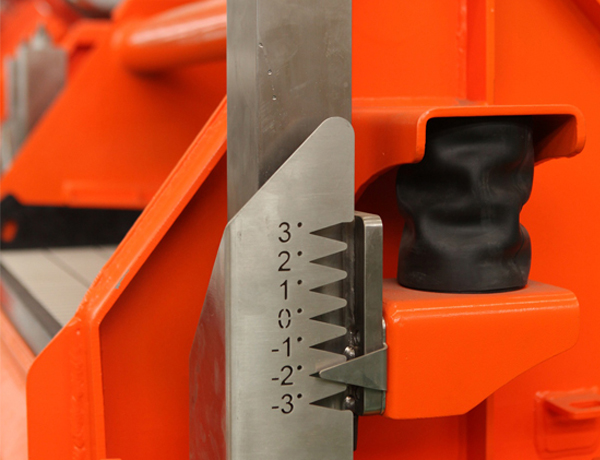

- Shaker deck angle is adjustable while operating, with mechanical deck angle adjustment providing reliable performance.
- Shale shaker bottom deck is made of stainless steel for long service life.
- Heat treatment is applied to the complete shale shaker deck for High G force operation.
- Pretension shaker screen for fast screen replacement; shaker size is equivalent to Swaco Mongoose.
- Famous brand vibration motors: Italy OLI or US Martin motors.

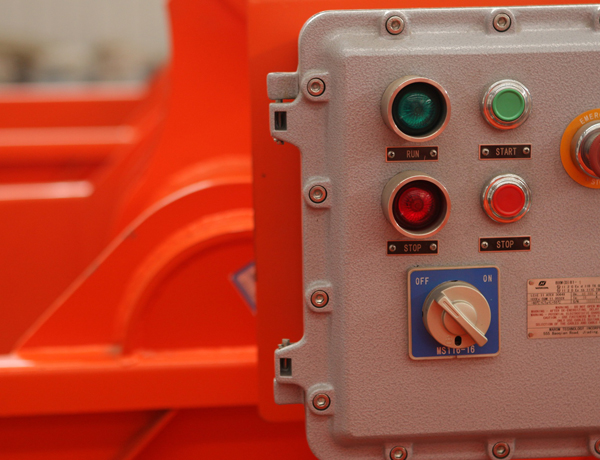

- Main electrical components are sourced from premium brands: SIEMENS, Schneider, or ABB available as options.
- Different types of shakers are available for different applications.
