Chemical Dosing System
KESS can provide two types of Chemical Dosing System: Automatic Chemical Dosing System and Manual Dosing System. Chemical Dosing System is widely used in wastewater and sewage treatment and other process media treatment in petroleum, chemical, paper, electric power, coal, pharmaceutical and food industries.
Product Features
KESS can provide two types of Chemical Dosing System: Automatic Chemical Dosing System and Manual Dosing System. Chemical Dosing System is widely used in wastewater and sewage treatment and other process media treatment in petroleum, chemical, paper, electric power, coal, pharmaceutical and food industries.

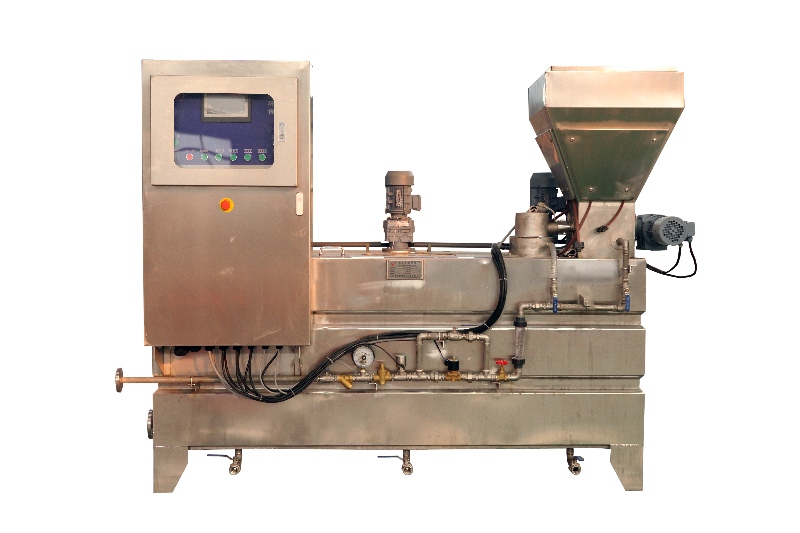

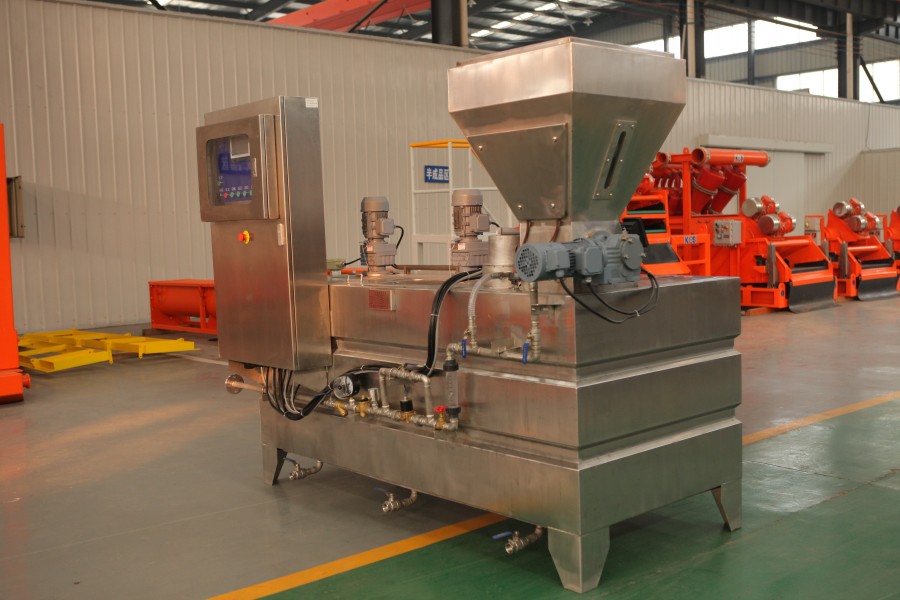

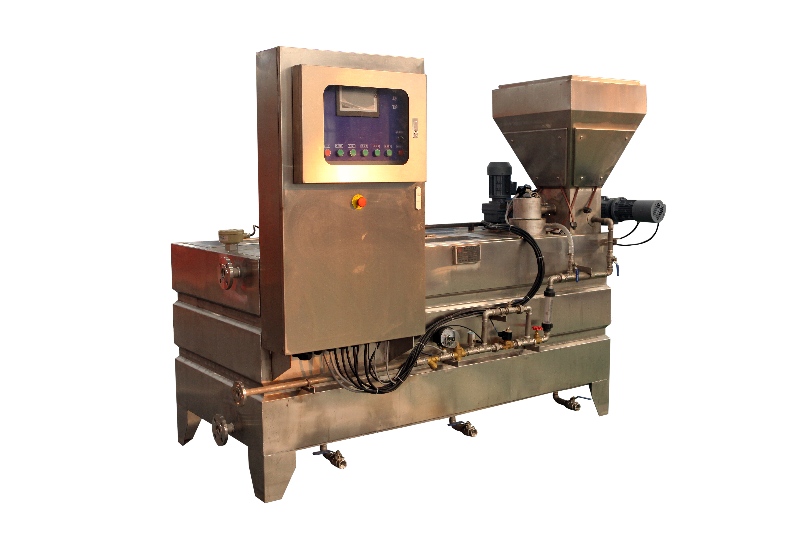

Automatic Chemical Dosing System
Automatic Chemical Dosing System is often used in the preparation, storage and dosing of powder chemicals. The whole set of device integrates automatic preparation, dissolving and dosing, and operates automatically. The built-in electric control cabinet can control the whole preparation and dosing process.
Automatic Chemical Dosing System can be used with main dewatering equipment such as decanter centrifuge, screw press and filter press for preparation and dosing flocculants solvent.
Automatic Chemical Dosing System can be installed in an insulated container or made according to your individual requirements.
| S/N | Description | Qty |
| 1 | Three-slot Cabinet: stainless steel, including dosing hopper, dry powder conveyor, flow meter, mixer, etc. | 1 Set |
| 2 | Dosing Pump (With pump bracket and manifold) | 2Units |
| 3 | Safety Valve | 2Units |
| 4 | Back Pressure Valve | 2Units |
| 5 | Pressure Gauge | 2Units |
| 6 | Buffer | 2Units |
| 7 | Filter | 1Unit |
| 8 | Explosion Proof Control Cabinet, PLC Smart Control | 1Set |
Technical Features of Automatic Chemical Dosing System
- High integrated all-in-one Equipment. The complete system can be controlled intelligently by PLC;
- Compact structure, easy to operate and install;
- The system will automatically shut down and issue an alarm signal if the equipment fails to work;
- Stable Performance, and Fully Automatic Control;
- All contact parts with the medium are made of engineering plastics or stainless steel.
Manual Chemical Dosing System
KESS can also provide PE manual dosing system is commonly used in water treatment, chemical industry, printing and dyeing industry.
Technical Features of Manual Chemical Dosing System
- Stable performance, large volume of Solution Tank, and low energy consumption;
- Compact structure, beautiful appearance, and small footprint;
- Easy operation and maintenance, large dosing flow;
- PLC control, fully automatic operation, remote control is available.
Applications of Chemical Dosing System
- Flocculation treatment of municipal or industrialwastewater
- Brine treatment
- Drinking water purification using surface water as water source
- Wastewater treatment in food industry
- Wastewater treatment of paper industry
- Wastewater treatment in ore smelting process
- Brine treatment
- Sludge dewatering treatment
- Chemical wastewater treatment
- Wastewater treatment in beverage industry
- Electroplating wastewater treatment
